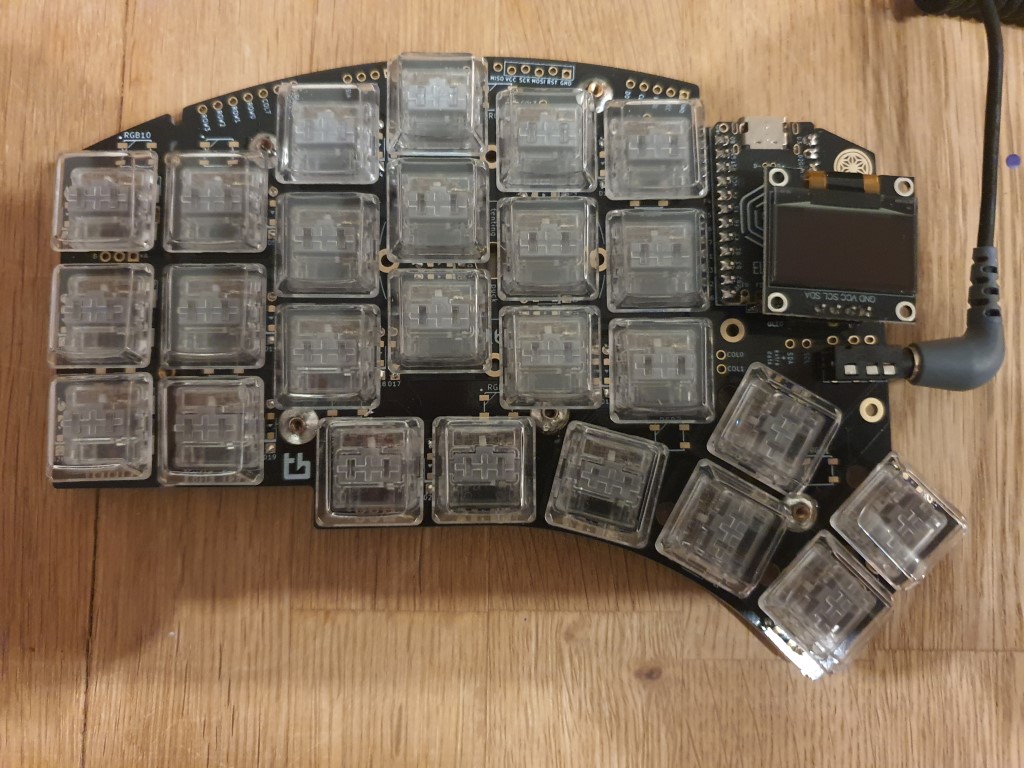

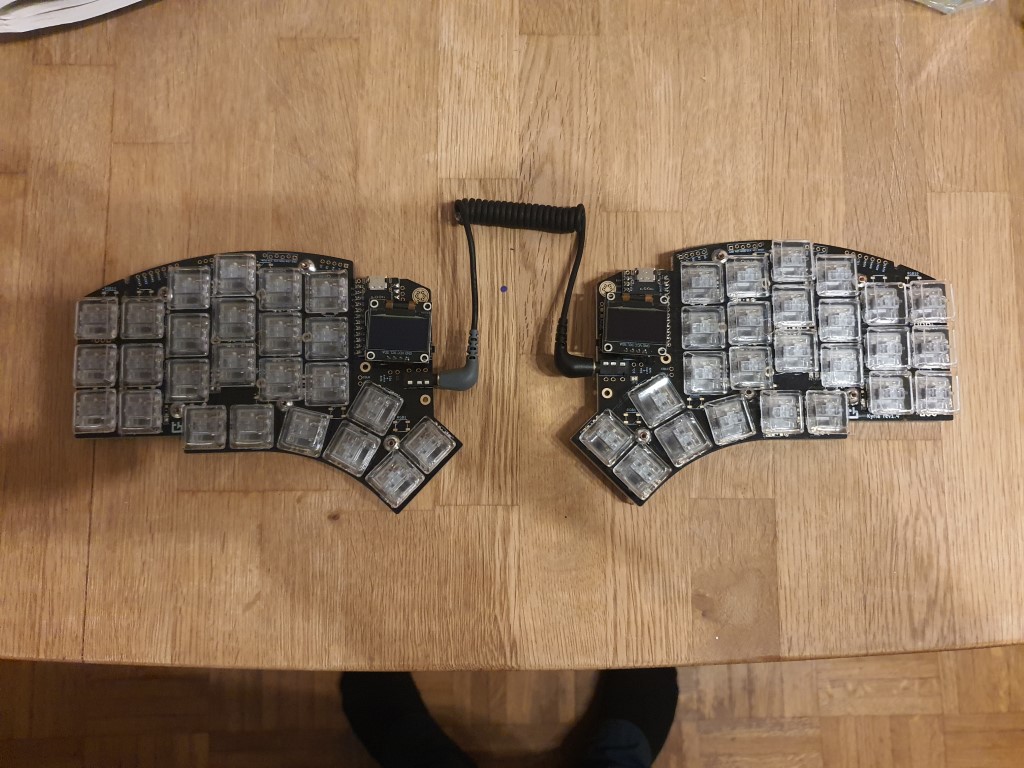

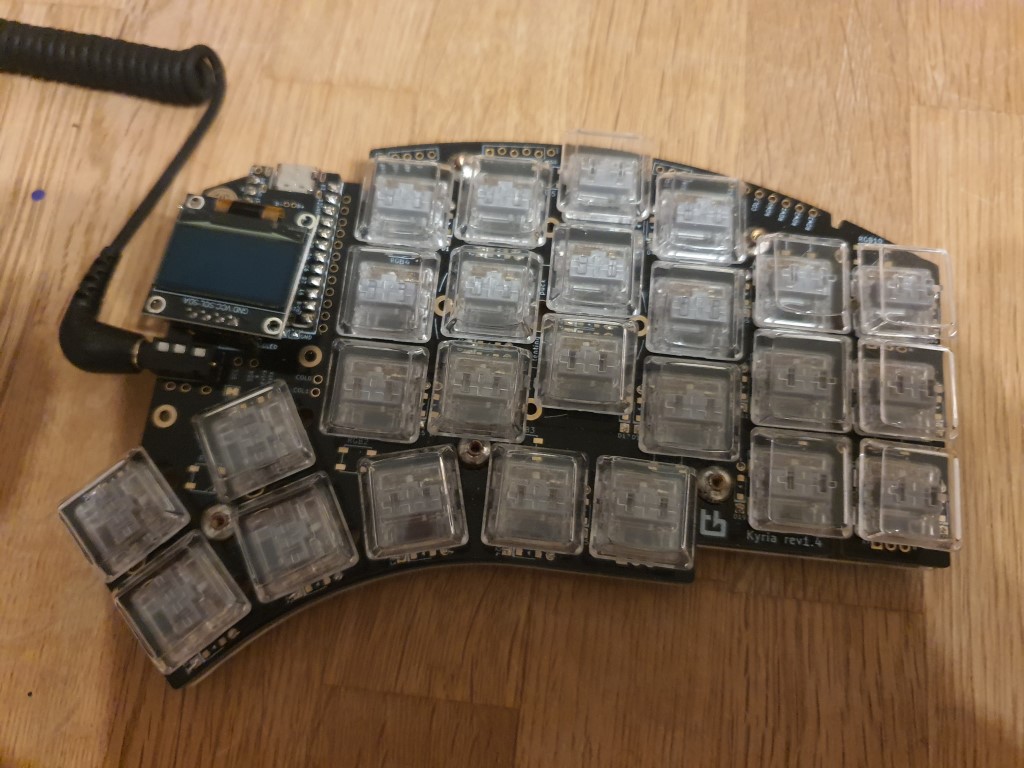

Splitkb Kyria
Components

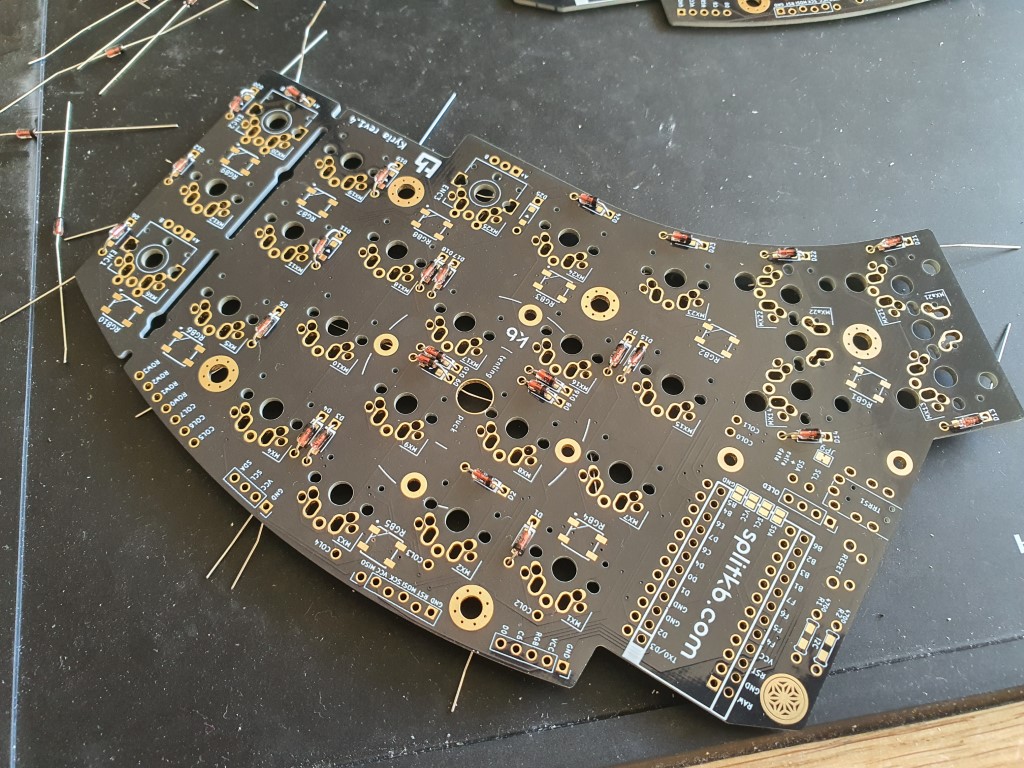

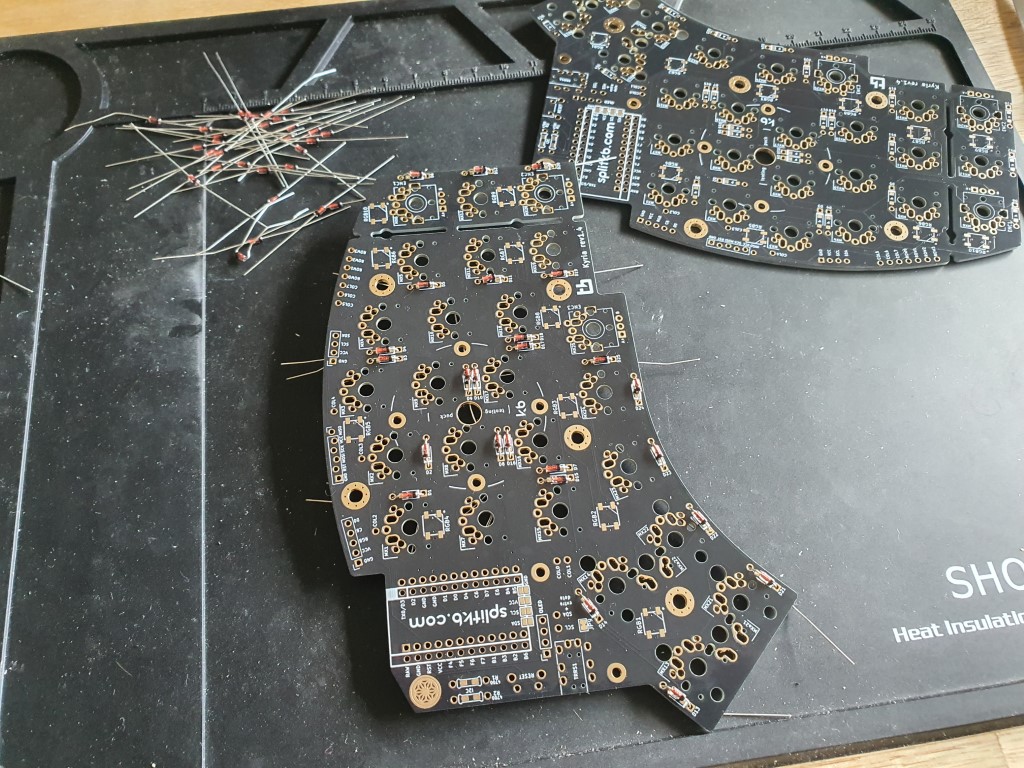

Kyria Acrylic Plate Case Clear Kailh Low Profile Choc Switches - Silver (linear) Kailh Choc Transparent Keycaps Elite-C Low Profile (rev4) Microcontroller Kyria PCB Kit - Black Kyria rev2 PCB Kit SSD1306 OLED Display 128x64
Firmware
Assuming QMK MSYS is configured (qmk setup) and has the latest clone of qmk/qmk_firmware I compiled the firmware with this command:
qmk compile -kb splitkb/kyria/rev1 -km default
The result should look like this:
Ψ Compiling keymap with make -r -R -f builddefs/build_keyboard.mk -s KEYBOARD=splitkb/kyria/rev1/base KEYMAP=default KEYBOARD_FILESAFE=splitkb_kyria_rev1_base TARGET=splitkb_kyria_rev1_base_default VERBOSE=false COLOR=true SILENT=false QMK_BIN="qmk"
Generating: .build/obj_splitkb_kyria_rev1_base_default/src/info_deps.d [OK]
avr-gcc.exe (GCC) 12.2.0
Copyright (C) 2022 Free Software Foundation, Inc.
This is free software; see the source for copying conditions. There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
Generating: .build/obj_splitkb_kyria_rev1_base_default/src/info_config.h [OK]
Generating: .build/obj_splitkb_kyria_rev1_base_default/src/default_keyboard.c [OK]
Generating: .build/obj_splitkb_kyria_rev1_base_default/src/default_keyboard.h [OK]
Compiling: keyboards/splitkb/kyria/kyria.c [OK]
Compiling: keyboards/splitkb/kyria/rev1/rev1.c [OK]
Compiling: .build/obj_splitkb_kyria_rev1_base_default/src/default_keyboard.c [OK]
Compiling: quantum/keymap_introspection.c [OK]
Compiling: quantum/quantum.c [OK]
Compiling: quantum/bitwise.c [OK]
Compiling: quantum/led.c [OK]
Compiling: quantum/action.c [OK]
Compiling: quantum/action_layer.c [OK]
Compiling: quantum/action_tapping.c [OK]
Compiling: quantum/action_util.c [OK]
Compiling: quantum/eeconfig.c [OK]
Compiling: quantum/keyboard.c [OK]
Compiling: quantum/keymap_common.c [OK]
Compiling: quantum/keycode_config.c [OK]
Compiling: quantum/sync_timer.c [OK]
Compiling: quantum/logging/debug.c [OK]
Compiling: quantum/logging/sendchar.c [OK]
Compiling: quantum/matrix_common.c [OK]
Compiling: quantum/matrix.c [OK]
Compiling: quantum/debounce/sym_defer_g.c [OK]
Compiling: quantum/split_common/split_util.c [OK]
Compiling: quantum/split_common/transport.c [OK]
Compiling: quantum/split_common/transactions.c [OK]
Compiling: quantum/main.c [OK]
Assembling: platforms/avr/xprintf.S [OK]
Compiling: platforms/avr/printf.c [OK]
Compiling: quantum/color.c [OK]
Compiling: quantum/rgblight/rgblight.c [OK]
Compiling: quantum/rgblight/rgblight_drivers.c [OK]
Compiling: quantum/process_keycode/process_rgb.c [OK]
Compiling: quantum/led_tables.c [OK]
Compiling: drivers/oled/oled_driver.c [OK]
Compiling: quantum/encoder.c [OK]
Compiling: drivers/encoder/encoder_quadrature.c [OK]
Compiling: platforms/avr/drivers/ws2812_bitbang.c [OK]
Compiling: quantum/crc.c [OK]
Compiling: quantum/process_keycode/process_grave_esc.c [OK]
Compiling: quantum/process_keycode/process_magic.c [OK]
Compiling: quantum/send_string/send_string.c [OK]
Compiling: quantum/process_keycode/process_space_cadet.c [OK]
Compiling: tmk_core/protocol/host.c [OK]
Compiling: tmk_core/protocol/report.c [OK]
Compiling: tmk_core/protocol/usb_device_state.c [OK]
Compiling: tmk_core/protocol/usb_util.c [OK]
Compiling: platforms/suspend.c [OK]
Compiling: platforms/synchronization_util.c [OK]
Compiling: platforms/timer.c [OK]
Compiling: platforms/avr/hardware_id.c [OK]
Compiling: platforms/avr/platform.c [OK]
Compiling: platforms/avr/suspend.c [OK]
Compiling: platforms/avr/timer.c [OK]
Compiling: platforms/avr/bootloaders/dfu.c [OK]
Compiling: platforms/avr/drivers/i2c_master.c [OK]
Archiving: .build/obj_splitkb_kyria_rev1_base_default/i2c_master.o [OK]
Compiling: platforms/avr/drivers/i2c_slave.c [OK]
Archiving: .build/obj_splitkb_kyria_rev1_base_default/i2c_slave.o [OK]
Compiling: platforms/avr/drivers/serial.c [OK]
Archiving: .build/obj_splitkb_kyria_rev1_base_default/serial.o [OK]
Compiling: tmk_core/protocol/lufa/lufa.c [OK]
Compiling: tmk_core/protocol/usb_descriptor.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Class/Common/HIDParser.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/AVR8/Device_AVR8.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/AVR8/EndpointStream_AVR8.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/AVR8/Endpoint_AVR8.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/AVR8/Host_AVR8.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/AVR8/PipeStream_AVR8.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/AVR8/Pipe_AVR8.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/AVR8/USBController_AVR8.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/AVR8/USBInterrupt_AVR8.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/ConfigDescriptors.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/DeviceStandardReq.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/Events.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/HostStandardReq.c [OK]
Compiling: lib/lufa/LUFA/Drivers/USB/Core/USBTask.c [OK]
Compiling: tmk_core/protocol/lufa/usb_util.c [OK]
Linking: .build/splitkb_kyria_rev1_base_default.elf [OK]
Creating load file for flashing: .build/splitkb_kyria_rev1_base_default.hex [OK]
Copying splitkb_kyria_rev1_base_default.hex to qmk_firmware folder [OK]
Checking file size of splitkb_kyria_rev1_base_default.hex [OK]
* The firmware size is fine - 27000/28672 (94%, 1672 bytes free)
The file splitkb_kyria_rev1_base_default.hex is now in the qmk_firmware folder. Type pwd and look for a folder named qmk_firmware in that path. The *.hex file should be located there.
Time to flash the firmware using QMK Toolbox. Load the firmware and selet ATmega32U4 as MCU, then connect the Microcontroller and press Flash.
The result should look like this:
Atmel DFU device connected (WinUSB): Atmel Corp. ATm32U4DFU (03EB:2FF4:0000)
Attempting to flash, please don't remove device
> dfu-programmer.exe atmega32u4 erase --force
> Erasing flash... Success
> Checking memory from 0x0 to 0x6FFF... Empty.
> dfu-programmer.exe atmega32u4 flash --force "C:\Users\0xfab1\qmk_firmware\splitkb_kyria_rev1_base_default.hex"
> Programming 0x6980 bytes...
> Success
> Reading 0x7000 bytes...
> Success
> Validating... Success
> 0x6980 bytes written into 0x7000 bytes memory (94.20%).
> dfu-programmer.exe atmega32u4 reset
Flash complete
Atmel DFU device disconnected (WinUSB): Atmel Corp. ATm32U4DFU (03EB:2FF4:0000)
